PHPでPDF出力(tcpdf) 8 (実行そして課題）
８．ジェネレーターの実行そして課題
ほぼ形は整ったので、実行してみた。

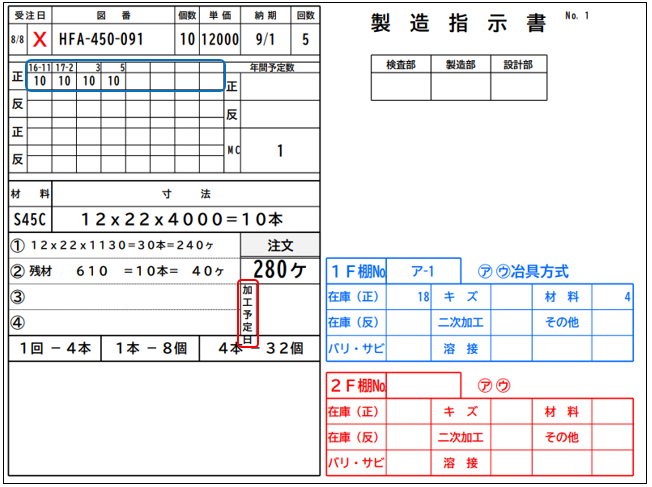

ジェネレーターで出力した定義ソースと実行結果
<?php Class tcpDefine extends tcpdfEditer { public function setHeader() { //ヘッダー・フッター印刷しない $this->setPrintHeader(false); $this->setPrintFooter(0); $this->setHeaderMargin(0); $this->setFooterMargin(0); //余白 $this->SetMargins(4,2,-1,true); } public function newPage() { //ページ追加 $this->AddPage('L','A4'); } public function setPage() { //自動改ページ オフ $this->SetAutoPageBreak(False, 0); $a = $this->GetX(); $b = $this->GetY(); $vPos=2; $hPos=5.1; $this->SetFont('kozgopromedium', '',11); $this->SetTextColor(0,0,0); $source ='受 注 日'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(19,8, $source, 0, 0,'C',0,'',0,0,'T','M'); //// $vPos=2; $hPos=24; $source ='図 番'; $pos = $vPos; $info = $this->adjustToWidth($source, 54,kozgopromedium,11); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(54,8, $source, 0, 0,'C',0,'',0,0,'T','M'); //// $vPos=2; $hPos=77.5; $source ='個数'; $pos = $vPos; $info = $this->adjustToWidth($source, 11,kozgopromedium,11); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(11,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=2; $hPos=88.2; $source ='単 価'; $pos = $vPos; $info = $this->adjustToWidth($source, 18,kozgopromedium,11); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(18,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=2; $hPos=106.1; $source ='納 期'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(22,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=2; $hPos=128; $source ='回数'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(13,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=2; $hPos=163; $this->SetFont('kozgopromedium', '',24); $source ='製 造 指 示 書'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(76,14, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=2; $hPos=246; $this->SetFont('kozgopromedium', '',11); $source =$this->_pdf_vars['No']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(13,8, $source, 0, 0,'R',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=5.1; $source =$this->_pdf_vars['day']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(8,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=13.3; $this->SetFont('kozgopromedium', '',22); $this->SetTextColor(255,0,0); $source ='Ⅹ'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=24; $this->SetFont('kozgopromedium', '',18); $this->SetTextColor(0,0,0); $source =$this->_pdf_vars['zuban']; $pos = $vPos; $info = $this->adjustToWidth($source, 43,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(43,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=77.5; $source =$this->_pdf_vars['kosuu']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=88.2; $source =$this->_pdf_vars['tanka']; $pos = $vPos; $info = $this->adjustToWidth($source, 18,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(18,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=106.1; $source =$this->_pdf_vars['nouki']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(22,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=9.5; $hPos=128; $source =$this->_pdf_vars['kaisuu']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(13,13, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=22.9; $hPos=163; $this->SetFont('kozgopromedium', '',12); $source ='検査部'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(26,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=22.9; $hPos=189; $source ='製造部'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(26,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=22.9; $hPos=215; $source ='設計部'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(24,8, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=25.9; $hPos=5.1; $this->SetFont('kozgopromedium', '',14); $source ='正'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(8,12, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=25.9; $hPos=13.3; $this->SetFont('kozgopromedium', '',11); $source =$this->_pdf_vars['oldday1']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,4, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=25.9; $hPos=24; $source =$this->_pdf_vars['oldday2']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,4, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=25.9; $hPos=34.7; $source =$this->_pdf_vars['oldday3']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,4, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=25.9; $hPos=45.4; $source =$this->_pdf_vars['oldday4']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,4, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=25.9; $hPos=98.9; $source ='年間予定数'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(42,4, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=30.4; $hPos=13.3; $this->SetFont('kozgopromedium', '',14); $source =$this->_pdf_vars['oldsuu1']; $pos = $vPos; $info = $this->adjustToWidth($source, 11,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(11,7, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=30.4; $hPos=24; $source =$this->_pdf_vars['oldsuu2']; $pos = $vPos; $info = $this->adjustToWidth($source, 11,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(11,7, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=30.4; $hPos=34.7; $source =$this->_pdf_vars['oldsuu3']; $pos = $vPos; $info = $this->adjustToWidth($source, 11,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(11,7, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=30.4; $hPos=45.4; $source =$this->_pdf_vars['oldsuu4']; $pos = $vPos; $info = $this->adjustToWidth($source, 11,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(11,7, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=30.4; $hPos=98.9; $source ='正'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(7,12, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=37.7; $hPos=5.1; $source ='反'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(8,12, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=42.2; $hPos=98.9; $source ='反'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(7,12, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=49.5; $hPos=5.1; $source ='正'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(8,12, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=54; $hPos=98.9; $source ='MC'; $pos = $vPos; $info = $this->adjustToWidth($source, 7,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(7,19, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=54; $hPos=106.1; $this->SetFont('kozgopromedium', '',18); $source =$this->_pdf_vars['MC']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(35,19, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=61.3; $hPos=5.1; $this->SetFont('kozgopromedium', '',14); $source ='反'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(8,12, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=76.5; $hPos=5.1; $this->SetFont('kozgopromedium', '',12); $source ='材 料'; $pos = $vPos; $info = $this->adjustToWidth($source, 19,kozgopromedium,12); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(19,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=76.5; $hPos=24; $source ='寸 法'; $pos = $vPos; $info = $this->adjustToWidth($source, 117,kozgopromedium,12); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(117,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=87.5; $hPos=5.1; $this->SetFont('kozgopromedium', '',18); $source =$this->_pdf_vars['zairyo']; $pos = $vPos; $info = $this->adjustToWidth($source, 19,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(19,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=87.5; $hPos=34.7; $source =$this->_pdf_vars['sunpou']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(11,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=98.5; $hPos=5.1; $source =$this->_pdf_vars['num1']; $pos = $vPos; $info = $this->adjustToWidth($source, 8,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(8,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=98.5; $hPos=13.3; $source =$this->_pdf_vars['sunpou1']; $pos = $vPos; $info = $this->adjustToWidth($source, 86,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(86,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=98.5; $hPos=106.1; $this->SetFont('kozgopromedium', '',16); $bgcolor='242,242,242'; $rgb = explode(',', $bgcolor); $this->SetFillColor($rgb[0],$rgb[1],$rgb[2]); $source ='注文'; $pos = $vPos; $info = $this->adjustToWidth($source, 35,kozgopromedium,16); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(35,11, $source, 0, 0,'C',1,'',0,0,'T','M'); // $vPos=109.5; $hPos=5.1; $this->SetFont('kozgopromedium', '',18); $source =$this->_pdf_vars['num2']; $pos = $vPos; $info = $this->adjustToWidth($source, 8,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(8,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=109.5; $hPos=13.3; $source =$this->_pdf_vars['sunpou2']; $pos = $vPos; $info = $this->adjustToWidth($source, 86,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(86,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=109.5; $hPos=106.1; $this->SetFont('kozgopromedium', '',26); $source =$this->_pdf_vars['chumon']; $pos = $vPos; $info = $this->adjustToWidth($source, 35,kozgopromedium,26); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(35,11, $source, 0, 0,'C',0,'',0,0,'T','T'); // $vPos=109.5; $hPos=143.5; $this->SetFont('kozgopromedium', '',18); $this->SetTextColor(0,102,255); $source ='１Ｆ棚№'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=109.5; $hPos=169.5; $this->SetFont('kozgopromedium', '',16); $source =$this->_pdf_vars['1Ftana']; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(32,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=109.5; $hPos=208.5; $this->SetFont('kozgopromedium', '',18); $source ='㋐ ㋒冶具方式'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(6,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=120.5; $hPos=5.1; $this->SetTextColor(0,0,0); $source ='③'; $pos = $vPos; $info = $this->adjustToWidth($source, 8,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(8,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=120.5; $hPos=106.1; $this->SetFont('kozgopromedium', '',12); $source ='加工予定日'; $pos = $vPos; for ($k= 0; $k != -1; ) { $info = $this->adjustToHeight($source, $k,7,6,11); $k = $info['length']; $text = $info['text']; $this->SetXY($hPos, $pos); $this->Cell(7, $info['height'], $text, 0, 0,'L',0,'',0,0,'T','M'); $pos += $info['height']; } // $vPos=120.5; $hPos=143.5; $this->SetFont('kozgopromedium', '',14); $this->SetTextColor(0,102,255); $source ='在庫（正）'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=120.5; $hPos=169.5; $source =$this->_pdf_vars['1Fzaiko']; $pos = $vPos; $info = $this->adjustToWidth($source, 20,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(20,11, $source, 0, 0,'R',0,'',0,0,'T','M'); // $vPos=120.5; $hPos=189; $source ='キ ズ'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=120.5; $hPos=233; $source ='材 料'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=120.5; $hPos=259; $source =$this->_pdf_vars['1Fzairyo']; $pos = $vPos; $info = $this->adjustToWidth($source, 18,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(18,11, $source, 0, 0,'R',0,'',0,0,'T','M'); // $vPos=131.5; $hPos=5.1; $this->SetFont('kozgopromedium', '',18); $this->SetTextColor(0,0,0); $source ='④'; $pos = $vPos; $info = $this->adjustToWidth($source, 8,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(8,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=131.5; $hPos=143.5; $this->SetFont('kozgopromedium', '',14); $this->SetTextColor(0,102,255); $source ='在庫（反）'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=131.5; $hPos=189; $source ='二次加工'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=131.5; $hPos=233; $source ='その他'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=142.5; $hPos=5.1; $this->SetFont('kozgopromedium', '',16); $this->SetTextColor(0,0,0); $source ='１回 － ４本'; $pos = $vPos; $info = $this->adjustToWidth($source, 40,kozgopromedium,16); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(40,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=142.5; $hPos=45.4; $source ='１本 － ８個'; $pos = $vPos; $info = $this->adjustToWidth($source, 43,kozgopromedium,16); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(43,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=142.5; $hPos=88.2; $source ='４本 － ３２個'; $pos = $vPos; $info = $this->adjustToWidth($source, 53,kozgopromedium,16); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(53,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=142.5; $hPos=143.5; $this->SetFont('kozgopromedium', '',14); $this->SetTextColor(0,102,255); $source ='バリ・サビ'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=142.5; $hPos=189; $source ='溶 接'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=158.3; $hPos=143.5; $this->SetFont('kozgopromedium', '',18); $this->SetTextColor(255,0,0); $source ='２Ｆ棚№'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,18); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=158.3; $hPos=208.5; $source ='㋐ ㋒'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(6,11, $source, 0, 0,'L',0,'',0,0,'T','M'); // $vPos=169.3; $hPos=143.5; $this->SetFont('kozgopromedium', '',14); $source ='在庫（正）'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=169.3; $hPos=189; $source ='キ ズ'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=169.3; $hPos=233; $source ='材 料'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=180.3; $hPos=143.5; $source ='在庫（反）'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=180.3; $hPos=189; $source ='二次加工'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=180.3; $hPos=233; $source ='その他'; $pos = $vPos; $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=191.3; $hPos=143.5; $source ='バリ・サビ'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // $vPos=191.3; $hPos=189; $source ='溶 接'; $pos = $vPos; $info = $this->adjustToWidth($source, 26,kozgopromedium,14); $this->SetFont('kozgopromedium', '',$info); $this->SetXY($hPos, $pos); $this->Cell(26,11, $source, 0, 0,'C',0,'',0,0,'T','M'); // //罫線設定 $this->Line(5.1, 2, 140.7, 2, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 9.5, 140.7, 9.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(13.3, 9.5, 13.3, 22.9, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(24, 2, 24, 22.9, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(77.5, 2, 77.5, 22.9, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(88.2, 2, 88.2, 22.9, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(106.1, 2, 106.1, 22.9, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(128, 2, 128, 22.9, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 22.9, 140.7, 22.9, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(163, 22.9, 239.5, 22.9, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 25.9, 140.7, 25.9, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(13.3, 30.4, 140.7, 30.4, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(163, 30.4, 239.5, 30.4, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 37.7, 98.9, 37.7, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(13.3, 42.2, 140.7, 42.2, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(163, 22.9, 163, 42.2, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(189, 22.9, 189, 42.2, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(215, 22.9, 215, 42.2, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(239.5, 22.9, 239.5, 42.2, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(163, 42.2, 239.5, 42.2, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 49.5, 98.9, 49.5, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(13.3, 54, 98.9, 54, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(98.9, 54, 140.7, 54, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 61.3, 98.9, 61.3, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(13.3, 65.8, 98.9, 65.8, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(13.3, 25.9, 13.3, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(24, 25.9, 24, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(34.7, 25.9, 34.7, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(45.4, 25.9, 45.4, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(56.1, 25.9, 56.1, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(66.8, 25.9, 66.8, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(77.5, 25.9, 77.5, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(88.2, 25.9, 88.2, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(98.9, 25.9, 98.9, 73.1, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(106.1, 30.4, 106.1, 73.1, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 73.1, 140.7, 73.1, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 76.5, 140.7, 76.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 87.5, 140.7, 87.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(24, 76.5, 24, 98.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 98.5, 140.7, 98.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 109.5, 106.1, 109.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 1, 'color' => array(0,0,0))); $this->Line(106.1, 108.8, 140.7, 108.8, array('width' => 0.1, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(106.1, 109.5, 140.7, 109.5, array('width' => 0.1, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(143.5, 109.5, 202, 109.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); //$this->Line(106.8, 98.5, 106.8, 120.5, array('width' => 0.1, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(106.1, 98.5, 106.1, 120.5, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 120.5, 106.1, 120.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 1, 'color' => array(0,0,0))); $this->Line(106.1, 120.5, 140.7, 120.5, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(169.5, 109.5, 169.5, 120.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(202, 109.5, 202, 120.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(143.5, 120.5, 277, 120.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(5.1, 131.5, 106.1, 131.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 1, 'color' => array(0,0,0))); $this->Line(143.5, 131.5, 277, 131.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(106.1, 120.5, 106.1, 142.5, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(113.1, 120.5, 113.1, 142.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 142.5, 140.7, 142.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(143.5, 142.5, 277, 142.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(45.4, 142.5, 45.4, 153.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(88.2, 142.5, 88.2, 153.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 153.5, 140.7, 153.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(143.5, 109.5, 143.5, 153.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(169.5, 120.5, 169.5, 153.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(189, 120.5, 189, 153.5, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(215, 120.5, 215, 153.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(233, 120.5, 233, 153.5, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(259, 120.5, 259, 153.5, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(277, 120.5, 277, 153.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(143.5, 153.5, 277, 153.5, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,102,255))); $this->Line(143.5, 158.3, 202, 158.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(169.5, 158.3, 169.5, 169.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(202, 158.3, 202, 169.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(143.5, 169.3, 277, 169.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(143.5, 180.3, 277, 180.3, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(143.5, 191.3, 277, 191.3, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(5.1, 2, 5.1, 202.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(140.7, 2, 140.7, 202.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(5.1, 202.3, 140.7, 202.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(0,0,0))); $this->Line(143.5, 158.3, 143.5, 202.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(169.5, 169.3, 169.5, 202.3, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(189, 169.3, 189, 202.3, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(215, 169.3, 215, 202.3, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(233, 169.3, 233, 202.3, array('width' => 0.4, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(259, 169.3, 259, 202.3, array('width' => 0.2, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(277, 169.3, 277, 202.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); $this->Line(143.5, 202.3, 277, 202.3, array('width' => 0.6, 'cap' => 'butt', 'join' => 'miter','dash' => 0, 'color' => array(255,0,0))); } } ?>
ジェネレートの処理時間は約1分ほど要した。
ブラウザでのPDF表示は、1~2秒程度で表示された。
赤枠が「折り返して全体表示」のセルであるが、はみ出してしまった。
高さによっては、フォントサイズを下げる処理が必要である。Excelで予めフォントサイズを下げておく手もあるが。
また、青枠のように列の繰り返しにはまだ対応できていない。今回はそれぞれの列に変数を定義した。
また、フォント対応が明朝とゴシックのどちらかであるが、今回はExcelのPDF化ではなく、TCPDF実行の定義ファイルの出力が目的であるので、こちらは目をつぶることにした。
因みに、表示するためのPHPのソースは
<?php require_once(dirname(__FILE__)."/../lib/TCPDF-master/tcpdf.php"); require_once(dirname(__FILE__)."/tcpdfEditer.php"); require_once(dirname(__FILE__)."/sample1.php"); $pdf = new tcpDefine(); $pdf->assign('No','1'); $pdf->assign('day','8/8'); $pdf->assign('zuban','HFA-450-091'); $pdf->assign('kosuu','10'); $pdf->assign('tanka','12,000'); $pdf->assign('nouki','9/1'); $pdf->assign('kaisuu','5'); $pdf->assign('oldday1','16-11'); $pdf->assign('oldday2','17-2'); $pdf->assign('oldday3','3'); $pdf->assign('oldday4','6'); $pdf->assign('oldsuu1','10'); $pdf->assign('oldsuu2','10'); $pdf->assign('oldsuu3','10'); $pdf->assign('oldsuu4','10'); $pdf->assign('MC','1'); $pdf->assign('zairyo','S45C'); $pdf->assign('sunpou','１２ｘ２２ｘ４０００＝１０本'); $pdf->assign('num1','①')
$pdf->assign('sunpou1','１２ｘ２２ｘ１１３０＝３０本＝２４０ヶ'); $pdf->assign('num2','②')
$pdf->assign('sunpou2','残材 ６１０＝１０本＝４０ヶ'); $pdf->assign('chumon','２８０ヶ'); $pdf->assign('1Ftana','ア-1'); $pdf->assign('1Fzaiko','18'); $pdf->assign('1Fzairyo','4'); //PDF出力 $pdf->setHeader(); $pdf->newPage(); $pdf->out('sample.pdf', 'I'); ?>
リテラルで代入しているが、ＤＢからデータを取得して代入すればよい。
イメージ通りのものを、簡単にTCPDFで出力できるようになった。
